Description



The S2018-P, an Unmanaged Switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It also provide the PoE function for powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.

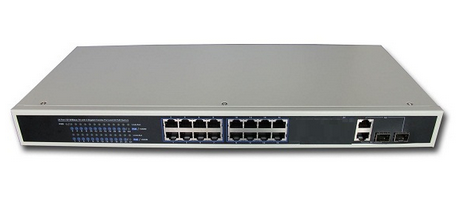

The S2018-P is a case-shaped device with a chassis of 1U high. It provides 16 10/100Base-TX ports+2 Gigabit Combo Ports( SFP+RJ45). It provides 8/16 PoE Injector.





Features



•   Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at

•   Provides 16 10/100Base-TX ports+2 Gigabit Combo Ports( SFP+RJ45)

•   Provides 8/16 PoE injector and build in 400W AC power

•   High back-plane bandwidth 7.2Gbps

•   IEEE802.3x Flow control

•   Surge protection for power port and data ports

•   EMI standards complies with FCC, CE class A
